Outback Logo

Outback GFX Inverters
Sealed inverters for Grid-Tie, Back-Up or Off-Grid
(standalone) Lower Power Applications

Click Here To Download The Outback Power GFX Inverters Spec Sheet**
(** Click to download and save on your computer. PDF format. Adobe Acrobat viewer required for viewing.)

Graphic: Acrobat Logo

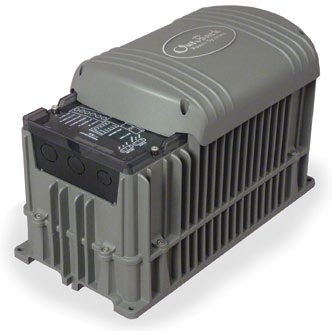

Picture of Outback Power Systems GFX Inverter

Outback GFX 120V/60Hz Inverters:
GFX1548
GFX1424
GFX1312

Outback GFX 230V/50Hz Inverters:
GFX1448E
GFX1424E
GFX1312E

The OutBack true sinewave GFX Series Inverter/Charger is a competitive power solution designed for applications with lower power demands. Incorporating a DC-to-AC sinewave inverter, battery charger and AC transfer relay housed within a die-cast aluminum chassis, the GFX inverter/Chargers give you the ability to sell solar, wind or hydro power back to the utility grid while providing instantaneous back-up power in the event of a utility outage.

The GFX Series built in transfer relay automatically disconnects your loads from the utility grid and powers them from the inverter in the event of an outage, allowing you to continue using your solar and battery back-up power, unlike traditional grid-tie systems. For areas that frequently experience power instability such as surges, spikes or brownouts, or where standard inverters have trouble syncing to the utility grid, the GFX Series grid reconnect timers have been shortened to reduce overall sell-back downtime and improve system functionality.

Intelligent multi-stage battery charging prolongs the life of your batteries and built-in networked comm munications allow for simultaneous communications of up to ten OutBack Power components within the system. The exclusive modular system architecture means that increased power output is just an additional inverter/charger away. Our GFX Series uses a sealed chassis that can operate in the harshest environmental conditions such as high humidity and corrosive salt air.

Sealed GFX Series Key Features:
  • Grid-Tie, Back-up or Standalone Power
  • Sinewave Output
  • Intelligent Battery Charging with
    Generator Support
  • 1.4 kVA Continuous Power Output
  • High Surge and Charger Ratings
  • 3-Phase 400VAC Capable
  • Sealed Chassis For Harsh Environments
  • Corrosion Resistant Internal Components
  • Field Serviceable

Outback Power GFX 120V/60Hz Inverters

OutBack GFX1548 sealed Inverter / Charger system with AC transfer switch and LED status display. 1500 VA continuous rating / 48 VDC battery / 120 VAC 60 HZ output / 20 amp DC charger / 60 amp AC transfer switch

OutBack GFX1424 sealed Inverter / Charger system with AC transfer switch and LED status display. 1400 VA continuous rating / 24 VDC battery / 120 VAC 60 HZ output / 40 amp DC charger / 60 amp AC transfer switch

OutBack GFX1312 sealed Inverter / Charger system with AC transfer switch and LED status display. 1300 VA continuous rating / 12 VDC battery / 120 VAC 60 HZ output / 70 amp DC charger / 60 amp AC transfer switch

Outback Power GFX 230V/50Hz Inverters

OutBack GFX1448E sealed Inverter / Charger system with AC transfer switch and LED status display. 1400 VA continuous rating / 48 VDC battery / 230 VAC 50 HZ output / 20 amp DC charger / 30 amp AC transfer switch

OutBack GFX1424E sealed Inverter / Charger system with AC transfer switch and LED status display. 1400 VA continuous rating / 24 VDC battery / 230 VAC 50 HZ output / 40 amp DC charger / 30 amp AC transfer switch

OutBack GFX1312E sealed Inverter / Charger system with AC transfer switch and LED status display. 1300 VA continuous rating / 12 VDC battery / 230 VAC 50 HZ output / 70 amp DC charger / 30 amp AC transfer switch
